Open Body Garbage Tipper

Get a Price/Quote

Open Body Garbage Tipper Specification

Power
40-60 kW

Mileage
7-11 km/l

Body Type
Open Box

Fuel Tank Capacity
40-60 Litres

Capacity
3 Cubic Meter (Approx.)

Torque
140-230 Nm

Vehicle Model
Standard Utility/Tipper Vehicle

Shape
Rectangular open body

Wheelbase
2500-3300 mm

Usage & Applications
Municipal solid waste collection and transportation

Wheel No.
4

Vehicle Type
Garbage Collection Tipper

Features
Hydraulic tipping system, corrosion-resistant paint, easy unloading mechanism, reinforced body

Finish
Powder coated

Capacity(Load)
1.5 to 3 Ton

Horsepower
40-60 HP (typical for utility vehicles)

Transmission Type
Manual

Fuel Type
Diesel

Engine Capacity
1496-2500 cc

Gross Vehicle Weight
3750-5500 kg

Dimension (L*W*H)
Approx. 3600 mm x 1800 mm x 2100 mm

Model
Open Body Garbage Tipper

Body Material
Mild Steel

Suspension
Leaf spring front and rear

Compliance
Meets local municipal standards

Loading Mechanism
Manually loaded, equipped with tipper lever

Lift Cycle Time
30-40 seconds per tip

Rear Door
Manually operated rear hinged door

Tyre Size
7.00 x 16 or equivalent

Side Walls Height
Approx. 1200 mm

Hydraulic System
Heavy-duty single-cylinder hydraulic lift

Chassis
Sturdy ladder frame

Operating Temperature
-10C to +50C

Color
Custom paint options (standard blue/green)

Brake Type
Air assisted hydraulic brakes

About Open Body Garbage Tipper

Vinod Automotive Industries is the leading manufacturer and exporter of Garbage Tipper/Hopper Tipper Globally. The Capacity of the Hopper will be approximately 1.8cum and it consist of power pack run by chassis battery/by power take of unit.

The container is made up of 2mm thickness MS IS 2062 grade sheets which is strong enough to take the operating load and shall be reinforced by stiffeners and steel section, container garbage unloading will be done hydraulically.

There are two segments of 1.8cum capacity Garbage Tipper/Hopper Tipper:

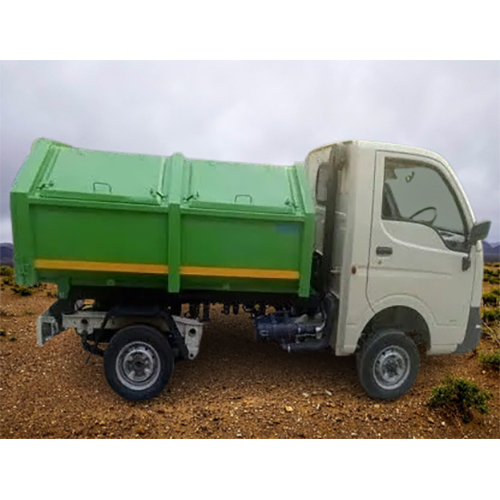

Close Body Garbage Tipper
Open Body Garbage Tipper

Open Body Garbage Tipper

TECHNICAL SPECIFICATION:

Sr. No.	Description
1	MS FRAME
2	POWER PACK/PTO DRIVE
3	CONTAINER/HOPPER
4	TIPPING ARRANGEMENT
5	HYDRAULIC SYSTEM
6	CONTROLS
7	ACCESSORIES
8	HYDRAULIC RESERVOIR TANK AND FILTERS
9	REVERSE AUDIO VISUAL ALARM, LOCKABLE TOOL BOX
10	LIFTING ANGLE OF THE TIPPING ARRANGEMENT 45 TO 70
11	ISO APPROVED VALVES
12	PAINTING AND BRANDING (AS PER CUSTOMER REQUIREMENTS)

Heavy-Duty Hydraulic System

Engineered for effortless waste unloading, the single-cylinder hydraulic lift tips the open body within 30-40 seconds per cycle. The mechanism is manually activated via a dedicated tipper lever, improving operational efficiency in municipal waste management applications.

Rugged and Reliable Construction

The ladder frame chassis and high-quality mild steel body provide superior structural integrity. Powder coating and corrosion-resistant paint safeguard the tipper against harsh environments, while reinforced sidewalls withstand heavy loads and frequent use.

Optimized for Municipal Operations

Designed specifically for urban and municipal waste collection, the tipper meets local compliance standards and offers a practical loading height and customizable color options. Its robust suspension and air-assisted hydraulic brakes ensure safety and performance on a variety of road surfaces.

FAQ's of Open Body Garbage Tipper:

Q: How does the hydraulic tipping system function on this garbage tipper?

A: The tipper features a heavy-duty single-cylinder hydraulic lift that is activated via a manually operated lever. This mechanism raises the open body, allowing for safe and efficient unloading of waste, with each lift cycle completed within 30 to 40 seconds.

Q: What is the loading process and capacity of the Open Body Garbage Tipper?

A: The garbage tipper is manually loaded through its open rectangular body, which can accommodate up to 3 cubic meters of municipal solid waste, or a payload of 1.5 to 3 tons depending on configuration.

Q: When is this vehicle ideally used for garbage collection activities?

A: This vehicle is best suited for daily municipal waste collection, particularly in urban areas where regular removal and transportation of solid waste is required. Its robust construction and reliable hydraulics support frequent operational use.

Q: Where can the Open Body Garbage Tipper be deployed?

A: The tipper is designed for municipal applications and can be deployed in city neighborhoods, towns, industrial sites, and any location that requires organized solid waste collection and transportation.

Q: What are the main benefits of using this tipper for waste management?

A: Key benefits include efficient unloading through the hydraulic system, ease of operation, enhanced safety via reinforced construction and powerful brakes, and compliance with local standards. The tipper also offers low maintenance due to its durable and corrosion-resistant body.

Q: How does the vehicle perform in different environmental conditions?

A: The garbage tipper is engineered to operate effectively in temperatures ranging from -10C to +50C. Its corrosion-resistant paint and powder-coated body ensure longevity even in challenging weather.
