Close Body Garbage Tipper

Get a Price/Quote

Close Body Garbage Tipper Specification

Shape
Rectangular with slanting top

Body Type
Closed Box Type

Vehicle Model
Suitable for Tata Ace/Dost/Similar

Fuel Tank Capacity
60 Litres

Power
75 HP @ 3200 rpm

Wheelbase
2500 mm

Features
Hydraulic operated tipping mechanism, Leak-proof construction, Heavy duty body

Vehicle Type
Garbage Collection Vehicle

Finish
Automotive Paint with anti-corrosive coating

Capacity
2.5 Cubic Meter

Torque
220 Nm @ 1400-1600 rpm

Wheel No.
4

Usage & Applications
Municipal garbage collection, Waste transportation

Mileage
10-12 km/litre

Capacity(Load)
2.5 Cubic Meter

Horsepower
75 HP

Transmission Type
Manual

Fuel Type
Diesel

Engine Capacity
2956 cc

Gross Vehicle Weight
4750 kg

Dimension (L*W*H)
Approx. 3200 x 1700 x 1300 mm

Model
Close Body Garbage Tipper

Body Material
Mild Steel

Maintenance
Low maintenance and easy to service

Side Wall Thickness
3 mm MS

Rear Door Mechanism
Hinged type with locking arrangement and rubber sealing

Sealing
Leak proof seals for odor and liquid control

Discharge Method
Rear tipping

Painting
Two coat primer and two coat enamel

Hydraulic System
Single/double acting hydraulic cylinder for easy tipping

Floor Thickness
4 mm MS

Chassis Mounting
Heavy duty cradle mounting

Operating Method
Driver operated hydraulic lever inside cabin

About Close Body Garbage Tipper

Vinod Automotive Industries is the leading manufacturer and exporter of Garbage Tipper/Hopper Tipper Globally. The Capacity of the Hopper will be approximately 1.8cum and it consist of power pack run by chassis battery/by power take of unit.

The container is made up of 2mm thickness MS IS 2062 grade sheets which is strong enough to take the operating load and shall be reinforced by stiffeners and steel section, container garbage unloading will be done hydraulically.

There are two segments of 1.8cum capacity Garbage Tipper/Hopper Tipper:

Close Body Garbage Tipper

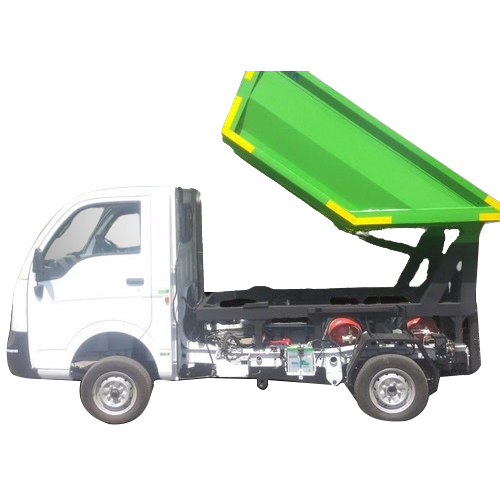

Open Body Garbage Tipper

Close body Garbage Tipper 1.8cum capacity:

TECHNICAL SPECIFICATION:

Sr. No.	Description
1	MS FRAME
2	POWER PACK/PTO DRIVE
3	CONTAINER/HOPPER
4	TIPPING ARRANGEMENT
5	HYDRAULIC SYSTEM
6	CONTROLS
7	ACCESSORIES
8	CLOSE BODY TOP
9	50:50 PARTITION FOR DRY AND WET GARBAGE
10	TOP OPENABLE DOOR FOR FILLING GARBAGE
11	HYDRAULIC RESERVOIR TANK AND FILTERS
12	REVERSE AUDIO-VISUAL ALARM, LOCKABLE TOOL BOX
13	LIFTING ANGLE OF THE TIPPING ARRANGEMENT 45 TO 70
14	ISO APPROVED VALVES
15	GROSS VEHICLE WEIGHT 1700KG
16	PAINTING AND BRANDING (AS PER CUSTOMER REQUIREMENTS)

Advanced Hydraulic Tipping Mechanism

Equipped with a reliable single or double acting hydraulic cylinder, the Close Body Garbage Tipper enables smooth and effortless rear tipping. The system is operated from within the driver's cabin, ensuring safety and convenience. The hydraulic mechanism accelerates waste discharge, minimizing downtime during collection rounds and improving operational efficiency for municipalities.

Durable Leak-Proof Construction

This tipper boasts a rugged mild steel body with 4 mm thick flooring and 3 mm side walls. Enhanced with leak-proof rubber seals and an automotive paint finish, it guarantees long-term resistance against corrosion, odors, and liquid leakage, making it especially suited for urban waste handling needs.

FAQ's of Close Body Garbage Tipper:

Q: How is the garbage discharged from the Close Body Garbage Tipper?

A: Garbage is discharged using a hydraulic tipping mechanism that lifts the body for efficient rear unloading. The operator controls this process through a hydraulic lever located inside the cabin, allowing for safe and easy disposal.

Q: What level of maintenance does the vehicle require?

A: The Close Body Garbage Tipper is designed for low maintenance. Its sturdy construction, anti-corrosive coating, and accessible service points make regular upkeep straightforward and cost-effective.

Q: When should the hydraulic system be serviced?

A: Routine checks are recommended during scheduled vehicle maintenance, typically every 5,000 to 10,000 km, or as specified in the manufacturer's guidelines to ensure optimal performance.

Q: Where can this garbage tipper be operated?

A: This vehicle is ideal for municipal waste collection and transportation in urban and semi-urban areas. Its compact size allows easy maneuvering through narrow city roads.

Q: What benefits does the leak-proof design offer?

A: The leak-proof seals and robust door mechanism effectively contain odors and prevent liquid spillage, ensuring hygiene during transportation and maintaining environmental cleanliness.

Q: How do I operate the hydraulic tipping system?

A: The tipping system is activated by a hydraulic lever inside the driver's cabin. Simply engage the lever as per the instructions provided, and the hydraulic cylinder will lift the body for unloading.

Q: What is the vehicle's load capacity and fuel efficiency?

A: The tipper can carry up to 2.5 cubic meters of waste and delivers a mileage of 10-12 km per litre, making it both efficient and cost-effective for daily waste management operations.
