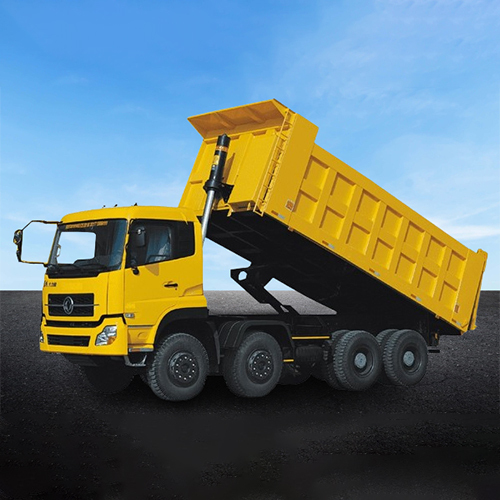

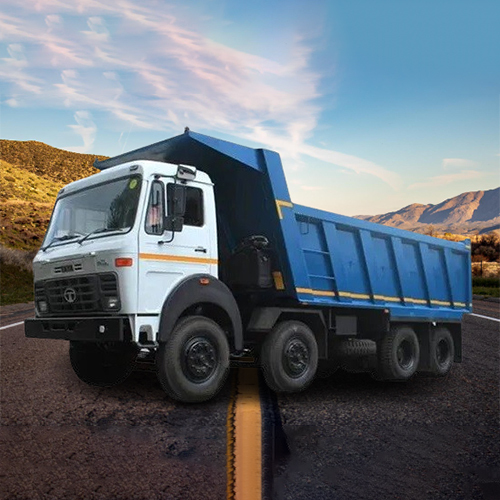

Dumper Truck

Get a Price/Quote

Dumper Truck Specification

Dimension (L*W*H)
6100 x 2500 x 3200 mm (approx.)

Capacity
8-16 Cubic Meter

Surface Finish
Painted/Anti-corrosive coating

Weight
7,500-12000 Kg

Usage & Applications
Mining, construction, and bulk material transportation

No Of Axel
2 or 3 (based on model)

Product Type
Dumper Truck

Trailer Type
Hydraulic Tipping

Trailer Use
For carrying heavy loads and debris

Trolley Use
Industrial and construction site material transport

Structure
Heavy-duty welded steel frame

Material
High Strength Steel

Max Load
10-20 Ton (varies by configuration)

Length
Approx. 15-20 feet

Transmission
Manual or automatic

Dumping Type
Hydraulic rear tipping

Ground Clearance
290-350 mm

Braking System
Air Brakes

Engine Power
170-300 HP

Tyres
Heavy-duty off-road

Cabin Type
Driver cabin with ROPS/FOPS (optional)

Suspension
Heavy-duty leaf spring

Fuel Tank Capacity
180-300 liters

Cooling System
Heavy-duty radiator

Chassis
Reinforced for rugged use

Turning Radius
6.5 - 8.5 meters

About Dumper Truck

Tip Trailer:

Vinod Automotive Industries is the World leading Manufacturer and Exporter of Tip Trailers with loading Capacity from 24 cum to 34 cum.
The manufacturing of the Tip Trailers are carried out with World class automatic machineries and high grade quality material. Each manufactured products under goes various quality check and stage wise inspections/testings for the productions of best quality products.
We provide best services Worldwide for our manufactured vehicles as per the Customer convenience and for the hassle-free use of the vehicles.

We are Manufactured Different types of Tip Trailer as per their Cubic Capacity and we mention as below:

Sr. no.	Cubic Capacity	Overall Length (mm)	Wheel Base (mm)	GCW (kg)	Suspension Type	Unladen Weight of Trailer (kg)
1	26 cum	8650	5200	55000	AAA	8580
2	28 cum	8650	5200	55000	AAA	8680
3	30 cum	8650	5200	55000	AAA	8740
4	32 cum	9450	6050	55000	AAA	9400
5	34 cum	9450	6050	55000	AAA	9500

Robust Engineering for Tough Operations

Crafted with a reinforced chassis, high strength steel construction, and a heavy-duty welded frame, this dumper truck is ideal for challenging industrial and construction tasks. The anti-corrosive coating and superior ground clearance protect the vehicle in harsh environments, enabling efficient operation across mining, debris management, and bulk transport applications.

Optimal Power and Versatility

With engine power ranging from 170 to 300 HP and load capacities of up to 20 tons, this truck efficiently moves heavy materials. The hydraulic tipping system streamlines unloading processes, while the option for manual or automatic transmission provides versatility for various operational preferences and site conditions. The spacious fuel tank supports long working hours without frequent refueling.

FAQ's of Dumper Truck:

Q: How does the hydraulic rear tipping mechanism benefit site operations?

A: The hydraulic rear tipping system allows for swift and safe unloading of materials, minimizing labor and overall operation time. This feature enhances efficiency, especially in construction and mining environments where quick turnaround is essential.

Q: What are the main applications of this dumper truck?

A: This dumper truck is extensively used for industrial and construction site material transport, mining operations, handling bulk materials, and carrying debris. Its robust build makes it well-suited for demanding environments and large-scale projects.

Q: When should the heavy-duty dumper truck be chosen over standard models?

A: Opt for this heavy-duty model when transporting large volumes or heavyweight materials in rugged environments is required, such as mining or industrial construction sites. Its reinforced chassis and powerful engine are designed for superior durability and performance in such conditions.

Q: Where can the dumper truck be operated safely?

A: Thanks to features like air brakes, ROPS/FOPS cab options, and substantial ground clearance, this truck safely operates on uneven terrain, construction sites, mining areas, and other challenging industrial landscapes.

Q: What is the process for switching between manual and automatic transmission?

A: The dumper truck offers models with either manual or automatic transmission. Selection is determined at the time of purchase based on user preference and operational needs; switching transmission is not typically performed after manufacture.

Q: How does the reinforced chassis and heavy-duty suspension improve durability?

A: The reinforced chassis and heavy-duty leaf spring suspension absorb shocks from tough terrains and heavy loads, reducing wear and extending the operational life of the truck. This ensures steady performance even under extreme conditions.

Q: What routine maintenance is recommended for optimal performance?

A: For best results, regularly check engine oil, cooling, and braking systems, inspect tyres, monitor the hydraulic system, and ensure all joints and frame bolts are secure. Routine maintenance sustains reliability and prolongs the truck's service life.
