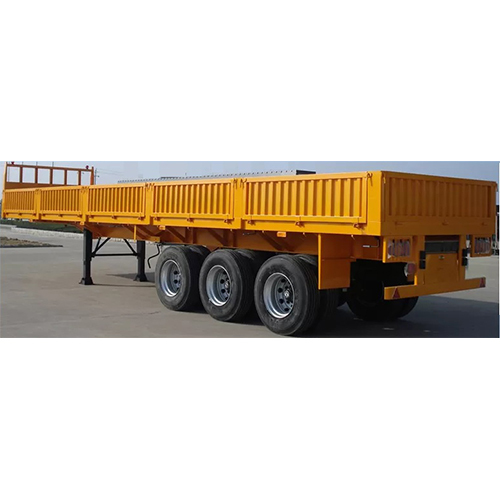

Side Wall Body

Get a Price/Quote

Side Wall Body Specification

Usage & Applications
Transportation of bulk materials, goods, and general cargo

No Of Axel
2/3/4 (Customizable)

Capacity
Heavy Duty Cargo Carrying

Surface Finish
Painted/Anti-corrosive coated

Weight
Variable (Based on design and configuration)

Dimension (L*W*H)
As per client requirement

Product Type
Side Wall Body

Trailer Type
Open Side Wall

Trailer Use
Yes

Trolley Use
Yes

Structure
Welded Steel Frame

Material
High Tensile Steel

Max Load
16-60 Tons (As per customization)

Length
20-40 Feet (Standard/customized)

Gate Type
Detachable / Hinged

Accessories
Ladder, Lashing Rings, Corner Posts, Reflective Tape

Floor Type
Checker Plate / Plain Sheet, 4 mm - 6 mm

Color
Standard Colors or as per requirement

Compatibility
Suitable with various truck chassis brands

Side Height
3 to 6 Feet (customized)

Panel Thickness
3 mm - 5 mm

About Side Wall Body

SIDE WALL BODY :

Vinod Automotive Industries is the World leading Manufacturer and Exporter of Side Wall Body with loading Capacity from 26 ft. to 40 ft.
The manufacturing of the Side Wall Body is carried out with World class automatic machineries and high-grade quality material. Each manufactured products under goes various quality check and stage wise inspections/testings for the productions of best quality products.
We provide best services Worldwide for our manufactured vehicles as per the Customer convenience and for the hassle-free use of the vehicles.

We are Manufactured Different types of Side Wall Body as per their Foot Capacity and we mention as below:

Sr. no.	Capacity (foot)	Overall Length (mm)	Wheelbase (mm)	GCW (kg)	Suspension Type	Unladen Weight of Trailer (kg)
1	26	8100	5125	55000	MMM	6030
2	28	8635	5300	55000	AAA	6140
3	28	8635	5300	55000	AAA	6870
4	28	8635	5300	55000	AAA	7040
5	28	8635	5300	55000	AAA	7215
6	30	9245	5790	55000	AAA	6420
7	30	9245	5790	55000	AAA	7240
8	30	9245	5790	55000	AAA	7430
9	30	9245	5790	55000	AAA	7620
10	32	9855	6400	55000	AAA	7260
11	32	9855	6400	55000	AAA	7460
12	32	9855	6400	55000	AAA	7665
13	34	10465	6820	55000	AAA	7525
14	34	10465	6820	55000	AAA	7885
15	34	10465	6820	55000	AAA	8065
16	36	11075	7390	55000	AAA	7705
17	36	11075	7390	55000	AAA	7860
18	36	11075	7390	55000	AAA	8010
19	40	12300	8370	55000	AAA	7240
20	40	12300	8370	55000	AAA	6050
21	40	12300	8370	55000	AAA	8095
22	40	12300	8370	55000	AAA	8245
23	40	12300	8370	55000	AAA	8395

Versatile Customization for Diverse Transportation Needs

Our side wall bodies can be tailored to meet unique cargo requirements, supporting lengths from 20 to 40 feet and various axle options. With customizable heights, floor types, and panel thickness, each build is optimized for secure and efficient bulk or general goods transport. The detachable or hinged gates and accessory options enable maximum operational flexibility, catering to logistics providers across multiple industries.

Robust Structure and Superior Durability

Constructed using high-tensile welded steel, these units deliver reliable performance and longevity under heavy-duty conditions. With anti-corrosive coatings or painted finishes, they withstand harsh weather and rigorous use. Reinforced checker plates or plain floor sheets add robust support for heavy cargo, while reflective tape enhances safety during night operations.

FAQs of Side Wall Body:

Q: How do I choose the right side wall body configuration for my specific transport needs?

A: Selecting the ideal configuration involves considering your cargo dimensions, required load capacity, desired gate type, and compatibility with your truck chassis. Our team works closely with clients to recommend optimal panel thickness, side height, floor type, and accessory options based on your intended applications.

Q: What is the process for customizing the side wall body dimensions and accessories?

A: Customization begins with discussing your logistical requirements, including length, width, height, and load preferences. Once specifications are finalized, we design and manufacture the side wall body with chosen accessories such as ladders, lashing rings, and reflective tape. Each unit is then rigorously tested before delivery to ensure compliance with your needs.

Q: When should I opt for a checker plate versus a plain sheet floor?

A: A checker plate floor is recommended when enhanced grip and durability are necessary, such as for heavy, abrasive, or shifting loads. Plain sheet flooring is suitable for general cargo or smooth-bottomed goods, providing a lighter and easier-to-clean option.

Q: Where can these side wall bodies be used effectively?

A: These units are suitable for both trolley and open side wall trailer setups, and are compatible with a broad spectrum of truck chassis brands. They excel in transporting bulk materials, general cargo, and diverse goods across highways, intercity routes, and even rugged terrains.

Q: What are the main advantages of using a welded steel frame with anti-corrosive coating?

A: A welded steel frame ensures maximum structural integrity, supporting substantial payloads and providing resilience against operational stresses. Anti-corrosive coatings or painted finishes protect the steel from rust and environmental degradation, significantly extending the service life of the equipment.

Q: How does detachable or hinged gate functionality benefit cargo operations?

A: Detachable or hinged gates offer operational flexibility, allowing for convenient side loading/unloading. This feature is especially beneficial for bulk or palletized goods, significantly reducing turnaround times and improving workflow efficiency.
