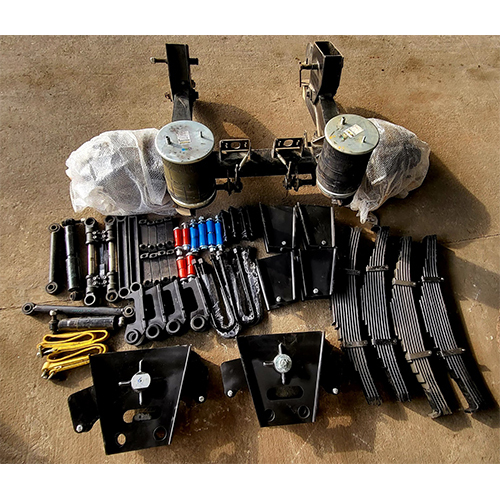

Axle With Air Suspension Kit

Get a Price/Quote

Axle With Air Suspension Kit Specification

Capacity
7000-20000 Kg per axle

Usage & Applications
Heavy-duty trailers, transport trolleys, commercial vehicles

No Of Axel
1-3 (as per trailer design)

Weight
Approx. 250-400 Kg (depends on size)

Surface Finish
Powder Coated/Anti-corrosive painted

Dimension (L*W*H)
Customized according to application

Product Type
Axle With Air Suspension Kit

Trailer Type
Flatbed/Lowbed/Container Trailer

Trailer Use
Yes

Trolley Use
Yes

Structure
Heavy-duty tubular axle beam with integrated air suspension

Material
High strength alloy steel

Max Load
Up to 20 Tons (varies with model)

Length
As per trailer requirements

Maintenance
Low maintenance, easy replacement parts

Brake Type
Drum or disc brake compatible

Suspension Type
Air Suspension with multi-leaf or pneumatic bellows

Mounting Type
Bolt-on or welded mount

Operating Pressure
0.5-0.8 MPa (for air bags)

Axle Track
Customizable (1800 mm, 1900 mm, 2000 mm, etc.)

Height Adjustment Range
75 mm to 150 mm

Shock Absorbers
Heavy-duty hydraulic included

Wheel Hub
10 Studs (ISO Standard)

Compatibility
Suitable for various trailer brands

About Axle With Air Suspension Kit

Vinod Automotive industries is the leading exporter of Trailer Axle and we are known Globally as best axle exporter by the name of our sister concern company Chouhan Engineering Works.

Chouhan Engineering works is having a valuable experience of 25 Years in the field of manufacturing Tip-Trailers, Flat Bed Trolley, Side Wall Body and Trailer Axles of all capacities along with spare parts of all special purpose vehicles.

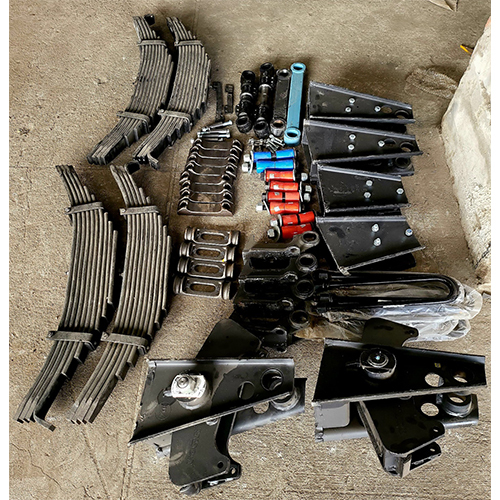

Sr. No.	Description	Qty.
1	MIDDLE HANGER BRACKET ASSY.	2
2	EQUALIZER BRACKET ASSY.	2
3	PLASTIC BUSH	2
4	EQUALIZER PIN	2
5	EQUALIZER WASHER	2
6	HEX NUT (EQUALIZER)	2
7	SPLIT PIN	2
8	HEX BOLT	8
9	SLEEVE	8
10	SPRING WASHER	8
11	HEX NUT	8
12	TORQUE ARM BUSH BIG	8
13	TORQUE ARM PIN BIG	4
14	TORQUE ARM WASHER	8
15	NYLOC NUT	8
16	REAR HANGER BRACKET ASSY.	4
17	LEAF SPRING ASSY.	4
18	ADJUSTABLE TORQUE ARM ASSY.	2
19	FIXED TORQUE ARM ASSY.	2
20	SPRING PAD BOTTOM ASSY.	4
21	TORQUE ARM BUSH	8
22	TORQUE ARM PIN	4
23	BOTTOM CLAMP	8
24	U-BOLT (U-SHAPE)	8
25	U-BOLT HEX NUT	16
26	FITMENT STICKER	4
27	TOP CLAMP FOR INVERTED U-BOLT	4

Versatile Air Suspension for Heavy-Duty Trailers

Our axle kit boasts an advanced air suspension system with multi-leaf or pneumatic bellows, allowing compatibility across flatbed, lowbed, and container trailer types. Each component, from the heavy-duty hydraulic shocks to the customizable axle track, is designed to accommodate specific trailer requirements and improve overall transport performance on Indian roads and beyond.

Durable Engineering and Maintenance Ease

Crafted from high-strength alloy steel and finished with powder coating or anti-corrosive paint, this axle kit ensures long-lasting resistance to environmental wear. The straightforward structure of the suspension allows for low maintenance, and replacement parts are readily accessible to minimize downtime for commercial operators.

FAQ's of Axle With Air Suspension Kit:

Q: How does the air suspension system in this axle kit enhance trailer stability?

A: The integrated air suspension-consisting of pneumatic bellows and heavy-duty hydraulic shock absorbers-provides superior shock absorption and height adjustment. This design helps reduce road vibrations and improves load balance during transit, ensuring stable and safe operation for heavy-duty trailers.

Q: What is the process for mounting the axle with air suspension kit on my trailer?

A: The kit offers both bolt-on and welded mounting options. It can be easily installed according to your trailer's design, with instructions provided for both methods. Professional assistance is recommended for precise alignment and to ensure optimal performance and safety.

Q: When should I consider replacing parts in the air suspension kit?

A: Routine inspection is advised, but thanks to the low-maintenance design and high-quality components, parts generally require replacement only after extended periods of rigorous use or if wear and tear-such as air bag leaks or shock absorber performance loss-is detected.

Q: Where can this axle kit be used and what trailer types is it compatible with?

A: This axle kit is compatible with a wide range of commercial vehicles, including flatbeds, lowbeds, container trailers, and transport trolleys. Its customizable dimensions and mounting options allow it to be tailored to various trailer brands throughout India.

Q: How does customizable axle track and height adjustment benefit my operations?

A: With adjustable axle track (1800 mm, 1900 mm, 2000 mm, etc.) and height range (75-150 mm), you can tailor the setup for optimal load distribution and road clearance, improving operational efficiency and cargo safety over different routes and loading conditions.

Q: What brake types and wheel hubs are supported by this axle kit?

A: The axle with air suspension supports both drum and disc brakes, offering versatile braking options for different operational needs. The 10-stud ISO standard wheel hub ensures secure wheel fitment and compatibility with most commercial trailer wheels.
